Deep Well Inspection Camera 70mm Panoramice Borehole Inspection Camera
GYGD-IIS panoramic probe downhole television is an imaging system designed for downhole detection. It can clearly reflect the various conditions of the borehole wall, and save and analyze the images through video equipment or microcomputers, providing a reliable basis for analyzing various geological conditions in the well. This system uses the latest television camera technology and is particularly suitable for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology departments. It can detect cracks, dislocations, fallen objects in the well, blockage of filter pipes and quicksand positions, and can observe the bedrock cracks and development status in bedrock areas, as well as the size and location of karst caves and other geological conditions.
Product Feature
1. High waterproof performance: The waterproof downhole TV adopts a professional waterproof design to ensure normal operation in a humid or underwater environment without being affected by moisture.
2. High-definition image quality: Equipped with a high-definition camera, it can provide clear and detailed images even in a dim or turbid underwater environment, helping staff to accurately judge the situation.
3. Strong durability: Considering the particularity of extreme environments, the waterproof downhole TV adopts high-quality materials and strict production processes to ensure the stability and durability of the equipment.
product details
|
|
|
|||
|
Main control box |
ABS/PP alloy material one-piece injection molding |
|||
|
Winch |
Electric Winch |
|||
|
Display |
8 inch high brightness industrial display |
|||
|
Video system |
U disk (32G) optional |
|||
|
Depth counter |
electronic meter |
|||
|
Logging cable |
4 core tensile, length 0-2000 m |
|||
|
Centralizer |
Stainless steel spring piece |
|||
|
Toolbox |
Connecting cables and accessories |
|||
|
Detailed product parameters |
||||
|

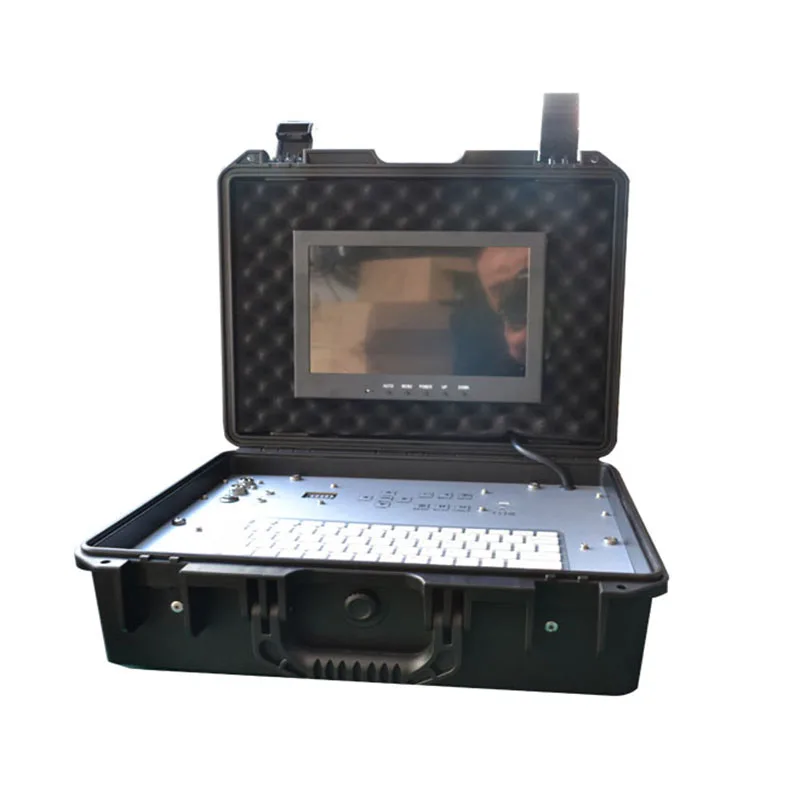

Main control box
|
ABS main control box Voltage input: 12V/220V Depth interface: connection depth sensor Display: 8 inch high brightness LED display, outdoor viewing U disk stores video files for live playback. Video 8x magnification. One button to switch video display |
|||
|

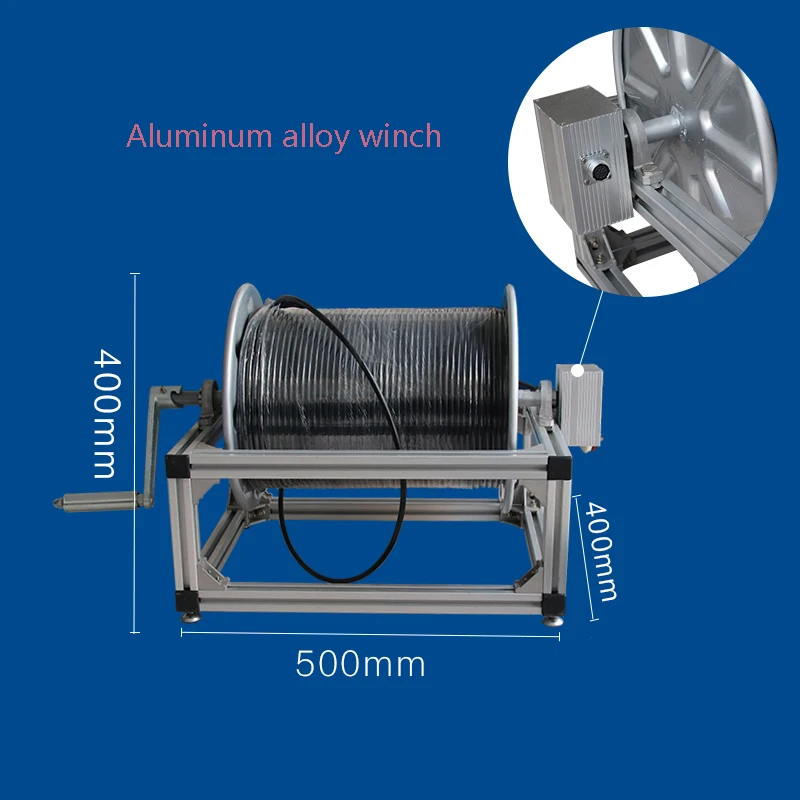

Electric Winch
|
* Electric winch: 220V power input, the speed and probe lifting can be controlled by the control button of the main control box * Downhole pulley: The downhole pulley has a depth counting function and needs a data cable to connect to the main control box for use |
|||
|
Panoramic camera
|
* Camera material: galvanized * Camera size: 40mm * Camera lens material: high transparent quartz glass lens * Camera pixels: Sony CCD camera, 700 lines * Lens angle: 120 degrees * Camera light: 8 high-bright LED lights on the front, * Probe withstand voltage: withstand voltage 20MPA, * Maximum pressure depth up to 2000 meters |
|||
|
display
|
* 8-inch LCD display * Aspect ratio: 4:3 * Contrast ratio: 450:1 * Brightness: 500cd/㎡ * Resolution: 1024×768 * Power supply DC 12V * Color system: PAL/NTSC/SECAM |
|||
|

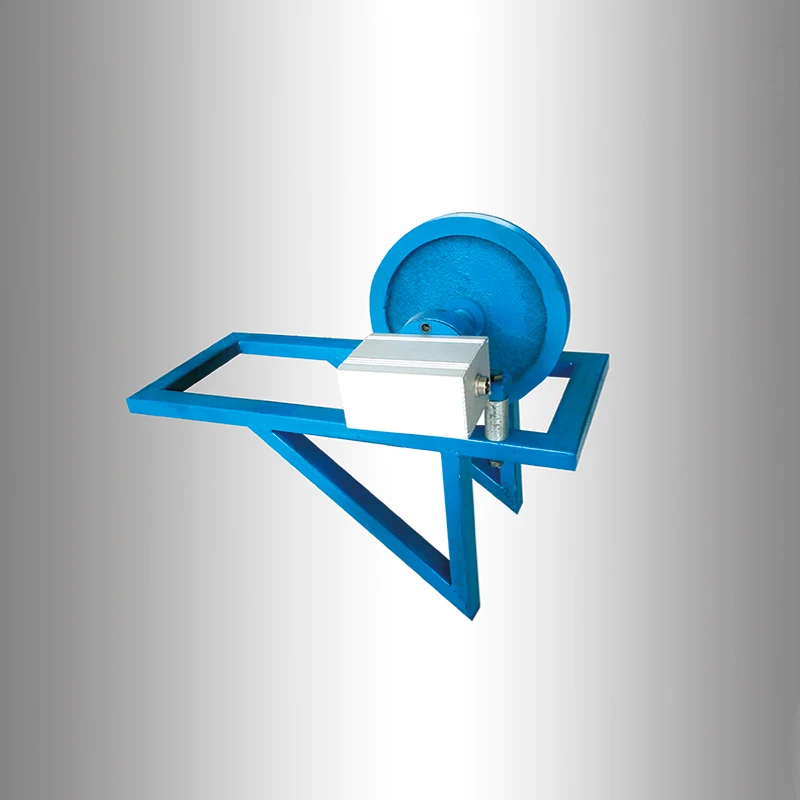

Downhole pulley
|
Downhole pulley: electronic meter function |
|||
Application fields of underground television:
1. Deep sea exploration: In marine scientific research, waterproof underground television can help scientists observe deep-sea organisms, geological structures, etc., and provide valuable information for marine ecological protection and research.
2. Underground mineral exploration: In mineral development, waterproof underground television can go deep into the mine, monitor the mineral situation in real time, and improve work efficiency and safety.
3. Industrial testing: In the industrial field, waterproof underground television can be used to check the internal situation of equipment, discover potential problems in time, and reduce production accidents.
